HIMALAYA Matrix-Core V2 Wireless Dev Board ESP-WROOM-32 mit SD Shield Partial Kit

+ 1

show

Top rated

Himalaya

HIMALAYA Matrix-Core V2 Wireless Dev Board ESP-WROOM-32 mit SD Shield Partial Kit

SKU: HL01005

5.0 / 1 review

10,32 € ~~12,90 €~~

per pack

incl. 19% VAT plus

Net: 8,67 €

Choose tax zone / country of delivery

Product customisation & sourcing & PCBA one-stop service are available with us.

Request personal offer!

Available immediately

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Hinweis: Wenn Sie dieses Matrix Core V2 Board alleine verwenden, wird nur 5V Spannung unterstützt. Deshalb liefern wir ein Adapterboard mit - Matrix SD Shield, das 3,3V Spannung unterstützt.

More product details

Product Information

Product safety information

Manufacturer information:

Himalaya
Room 1221, Hongyu Building, Longguan Road, Shitouling Community, Longhua Street, Longhua District, Shenzhen
Shenzhen, China, 518109
[email protected]
https://eckstein-shop.de/HIMALAYA-Marken

Responsible person:

Eckstein GmbH
Am Ostbahnhof 3
Niedersachsen
Clausthal-Zellerfeld, Deutschland, 38678
[email protected]
https://eckstein-shop.de

Dimensions and Weight
GTIN:	4060137054396
HAN:	HL01005
Category:	IoT & Smart Home
Storage Tiers:	Retiring
Shipping weight:	0,20 kg
Item weight:	0,02 kg
Dimensions ( Length × Width × Height ):	10,00 × 5,00 × 2,00 cm

Product Description

Überblick:

The Matrix-Core V2 is a comprehensive development platform with Espressif´s ESP32, ESP-WROOM-32, their super-charged version of the popular ESP8266. Like the 8266, the ESP32 is a WiFi-compatible microcontroller, but to that it adds support for Bluetooth low-energy (i.e BLE, BT4.0, Bluetooth Smart), and nearly 30 I/O pins. The ESP32´s power and versatility will make it the foundation of IoT and connected projects for many years to come.

The Matrix-Core V2 equips the ESP32 with everything necessary to program, run and develop on the wonderchip. In addition to the WiFi/BLE SoC, the Matrix-Core V2 includes an CP2102, which converts USB to serial, and allows your computer to program and communicate with the microcontroller.

It also features a LiPo charger, so your ESP32 project can be battery-powered and truly wireless. Additionally, the board includes a handful of LEDs and buttons to aid in your development.

You can find the compatible LiPo battery and charger from HIER

Features Matrix-Core:

Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
25 µA deep sleep current
32 GPIO
10-electrode capacitive touch support
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
Up to 16 MBytes of external flash
Up to 8 MBytes of external SRAM
Integrated LiPo Battery Charger(LiPo battery is not included)

Hinweis: Wenn Sie dieses Matrix Core V2 Board alleine verwenden, wird nur 5V Spannung unterstützt. Deshalb liefern wir ein Adapterboard mit - Matrix SD Shield, das 3,3V Spannung unterstützt.

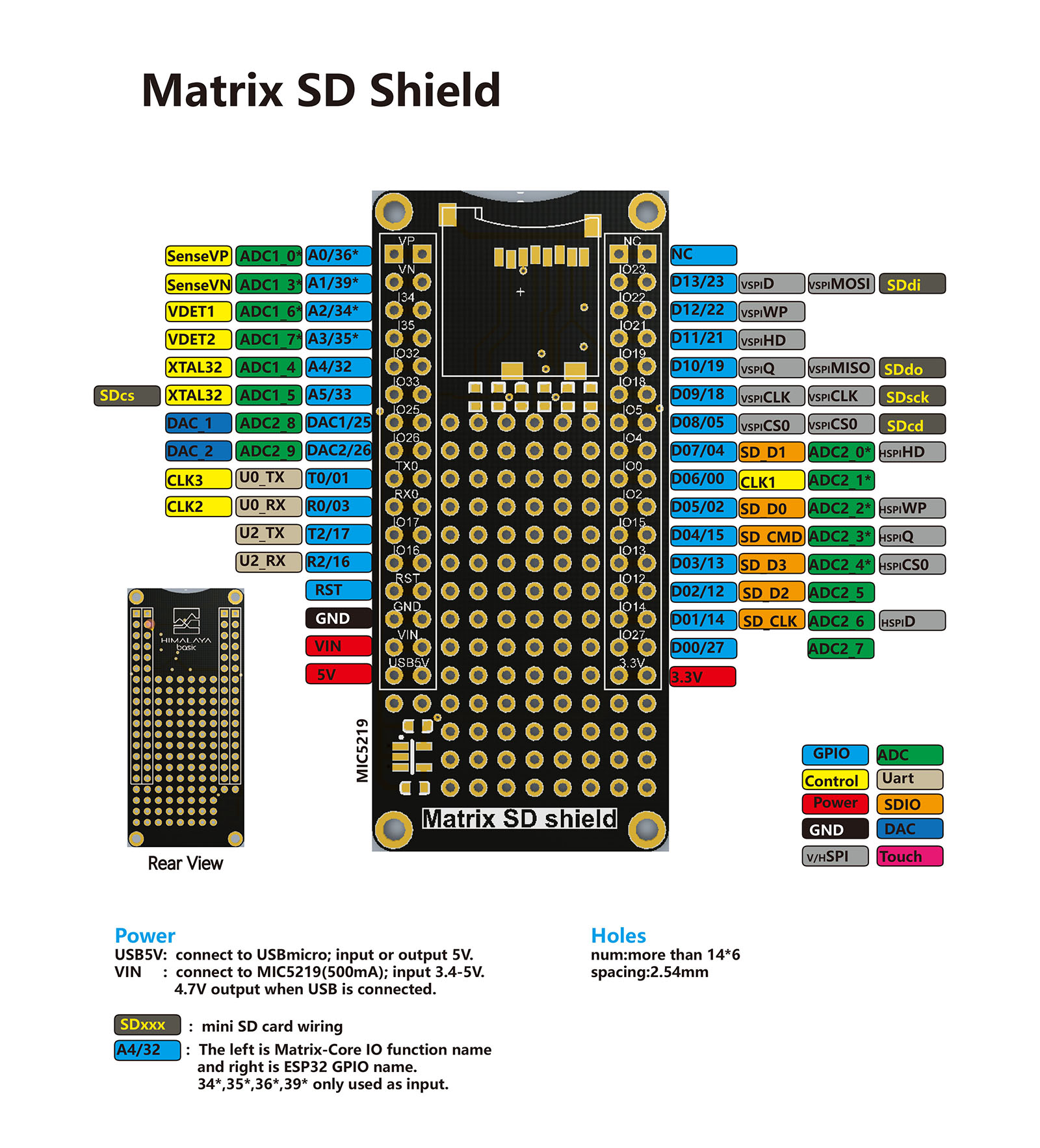

Features SD Shield:

Support vin input through LDO output 3.3v
Support SD card. (spi(vspi), cs(33) interface is compatible with sparkfun, cd interface is changed from 38 to 5)
Plug directly into the matrixcoreV1/V2 to use.
Used alone on the breadboard
The two sides of the two pads are connected separately
The positioning hole is compatible with the previous 2.1 aperture. Can be fixed with 2mm standard screws

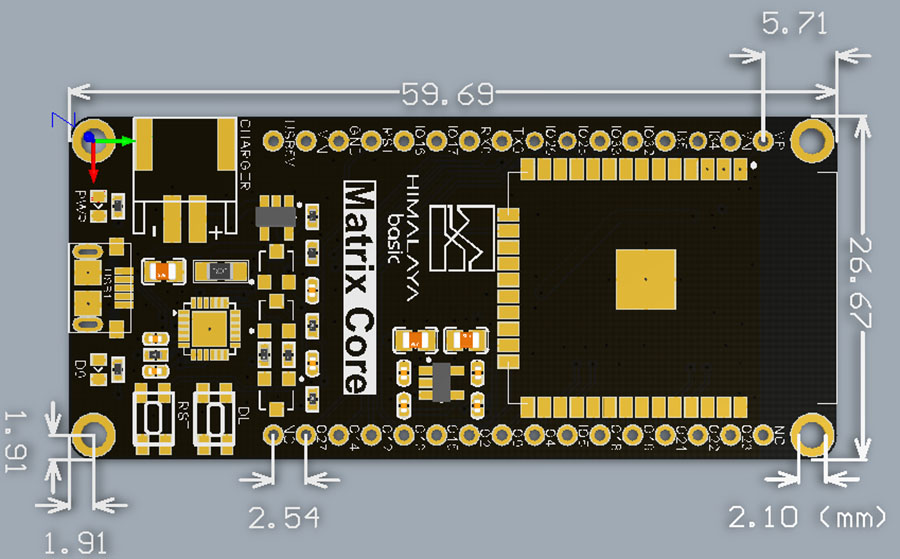

Dimension

Lieferumfang

1x HIMALYA Wireless Matrix-Core V2 Dev Board (without Lipo Battery)

1x HIMALYA SD Shield

Headers

Average item rating

Share your experiences with other customers!

All reviews:

How do reviews work?

Total entries: 1

25.07.2019 Verified purchase

Herausforderung für Laien

gekauft habe ich es wegen des SD Shield, weil ich darauf die Zusatzbeschaltung für Analogmessung sehr kompakt unterbringen kann.
Anfängern kann ich es nicht empfehlen. Es gibt kleine aber wesentliche Unterschiede zu gängigen Modulen - die Beschreibung und Dokumentation muß man lesen und verstehen können. Tutorials im Internet gibt es noch niicht.

Erich K

MatrixCore V2 Schematic

SD Shield Schematic

ESP-WROOM-32 Datasheet
