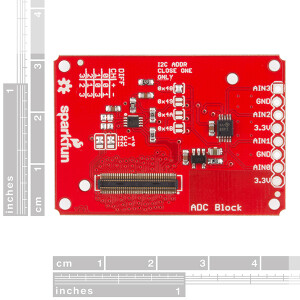

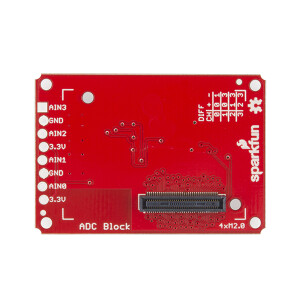

SparkFun Block for Intel® Edison - ADC

Name: SparkFun Block for Intel® Edison - ADC
Brand: Sparkfun
SKU: SF13770
Price: 9.95 EUR
Availability: InStock

SKU: SF13770

9,95 € ~~21,50 €~~

per pack

incl. 19% VAT plus

Net: 8,36 €

Choose tax zone / country of delivery

Product customisation & sourcing & PCBA one-stop service are available with us.

Request personal offer!

Available immediately

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Product Information

Product safety information

Manufacturer information:

SparkFun Electronics Inc
Dry Creek Parkway 6333
Colorado
Niwot, Vereinigte Staaten, 80583
[email protected]
https://eckstein-shop.de/SparkFun-Marken

Responsible person:

Eckstein GmbH
Am Ostbahnhof 3
Niedersachsen
Clausthal-Zellerfeld, Deutschland, 38678
[email protected]
https://eckstein-shop.de

Dimensions and Weight
GTIN:	4060137026645
HAN:	DEV-13770
Category:	Boards
Storage Tiers:	Retiring
Shipping weight:	0,01 kg
Item weight:	0,00 kg
Dimensions ( Length × Width × Height ):	5,00 × 5,00 × 0,50 cm

Product Description

The Intel® Edison is an ultra-small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel Atom™ SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and 70-pin connector to attach a veritable slew of shield-like "Blocks" which can be stacked on top of each other. It's no wonder how this little guy is lowering the barrier of entry on the world of electronics!

This Block adds ADC functionality to the Edison's I²C bus. The ADS1015 ADC from TI provides a single 12-bit delta-sigma convertor with an analog multiplexer. It can be configured as a four-channel single-ended device or as a two-channel differential device.

The ADC Block has jumpers to allow selection of the I²C slave address among four different options, allowing up to four of these cards to be stacked under one Edison. The sampling rate is not sufficient for audio capture, at 2.2kHz, but it should be adequate for most control applications. This version also has a 3.3V output (now with less noise on the line) to use as a voltage reference and a solder jumper to select between I2C1 and I2C6.

If you are looking to add a little more stability to your Intel Edison stack, check out this Hardware Pack. It will provide you with increased mechanical strength for stacking Blocks on your Edison!

Write the first review for this item and help others make a purchase decision!
