Pololu Ball Caster with 1/2? Metal Ball

Artikelnummer: PO953

EAN: 4060137107078

HAN: 953

Herkunftsland: CN

TARIC-Code: 8482.91.0010

This ball caster uses a 1/2? diameter metal ball. The height of the assembled kit ranges from 0.5? to 0.8?, depending on the combination of included spacers used.

Kategorie: Wheels


1,08 €

inkl. 16% USt.,

Alter Preis: 2,15 €
sofort verfügbar

Lieferfrist: ca. 1 - 2 Tage

Stk


Beschreibung

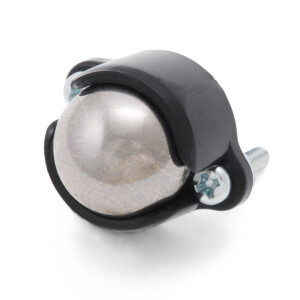

Pololu ball caster with 1/2" metal ball with included hardware.

Overview

This ball caster kit includes a black ABS housing, a 1/2? diameter metal ball, two spacers (1/16? and 1/8? thick), and two 7/16? #2 screws and nuts. The total height of the ball caster, 0.53?, can be increased to about 0.7? using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis, or you can use your own #2 or M2 screws if your application requires a different length.

Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.

For detailed dimensions, see the dimension diagram (162k pdf).

Comparison of Pololu ball casters

Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1?, 3/4?, 1/2?, and 3/8?.

Pololu ball caster
ball diameter
height with
no spacers
distance
between
screw holes
weight with
no spacers
or screws
0.40? 0.53? 0.03 oz
0.40? 0.53? 0.14 oz
0.53? 0.58? 0.07 oz
0.53? 0.58? 0.32 oz
0.88? 0.24? 0.25 oz
0.82? 0.61? 1.05 oz
1.10? 0.48? 0.65 oz
1.10? 0.48? 0.58 oz
1.10? 0.70? 0.36 oz
