Overview
New version available! We have released an updated 3pi+ 32U4 OLED Robot that includes an OLED display with better graphical capabilities than the LCD used by this original 3pi+ 32U4 robot. The 3pi+ 32U4 OLED Control Board can be used as a replacement part for a 3pi+ 32U4 OLED robot, and we recommend using the newer OLED version for new custom robot builds. This original version of the control board will only be available by special order once our existing stock runs out.

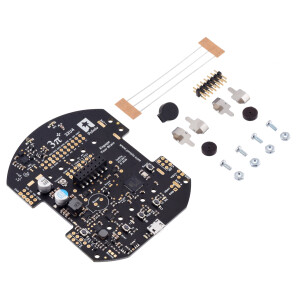

The 3pi+ 32U4 Control Board is designed to be assembled with a 3pi+ Chassis Kit and a pair of 6V Micro Metal Gearmotors with extended motor shafts to create a 3pi+ 32U4 robot. This product is primarily intended as a replacement product for the 3pi+ 32U4 robots and kits that already include it or for those who want to build a 3pi+ 32U4 robot with different gearmotor versions than the ones offered with those complete kits and assembled robots.
This is the control board for the original 3pi+ 32U4 Robot with an LCD. The newer 3pi+ 32U4 OLED Control Board is designed to work with an graphical OLED display.
Dimensions
Size: 2.6″ × 3.4″
Weight: 20 g (1)
General specifications
Processor: ATmega32U4 @ 16 MHz
RAM size: 2560 bytes
Program memory size: 32 Kbytes (2)
Motor driver: DRV8838
Motor channels: 2
Minimum operating voltage: 2.7 V
Maximum operating voltage: 6.5 V
Continuous output current per channel: 1.8 A
Logic voltage: 5 V
Reverse voltage protection?: Y
External programmer required?: N
Identifying markings
PCB dev codes: 3pi03a
Other PCB markings: 0J13071
Notes:
(1). Without included hardware.
(2). Note that 4 KB of the MCU's 32 KB of flash memory is used by the pre-installed USB bootloader. All 32 KB is available when programming via the ISP header rather than the Bootloader.
