mCookie-Motor is a DC motor controller with PWM (Pulse Width Modulation) for various speed control. The speed of the motor can be controlled through PWM and direction (forward or backwards). This module needs to be powered with a sufficient power supply such as:
BM shield with a BM module
mBattery.
Features
Current & speed limited by internal PWM;
Synchronous double-channel can reduce power consumption;
DC motor braking mode;
Capable of controlling two DC motors.
Speed and direction control.
Uses standard connectors: 2 pin, 1.25mm pitch JST connectors.

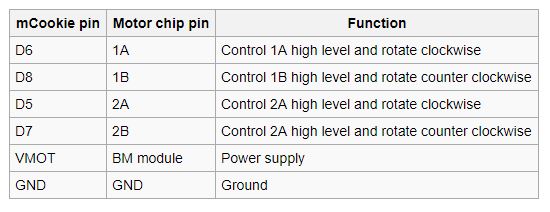

Specification
Note:
The pins including 5, 6, 7 and 8 cannot be occupied by other sensors while using the Motor or it may cause problems.
Cannot be power without sufficient power supply such as through only CoreUSB. Module Motor must be powered on by:
BM shield with a BM module
mBattery.
For more information about this product, please check the documents below.
