Adafruit GPIO Reference Card for Raspberry Pi Model B+/Pi 2/Pi 3

Adafruit

Adafruit GPIO Reference Card for Raspberry Pi Model B+/Pi 2/Pi 3

Name: Adafruit GPIO Reference Card for Raspberry Pi Model B+/Pi 2/Pi 3
Brand: Adafruit
SKU: AF2263
Price: 3.65 EUR
Availability: InStock

SKU: AF2263

GTIN:>4060137039485

HAN: 2263

Category: Miscellaneous

3,65 €

per pcs

incl. 19% VAT plus

Net: 3,07 €

Choose tax zone / country of delivery

Product customisation & sourcing & PCBA one-stop service are available with us.

Request personal offer!

Available immediately

Delivery time: ca. 3 weeks (DE - int. shipments may differ)

Description
Reviews

Product Information

Product safety information

Manufacturer information:

Adafruit Industries LLC
Varick St. 150
New York
New York, Vereinigte Staaten, 10013
[email protected]
https://eckstein-shop.de/Adafruit-Marken

Responsible person:

Eckstein GmbH
Am Ostbahnhof 3
Niedersachsen
Clausthal-Zellerfeld, Deutschland, 38678
[email protected]
https://eckstein-shop.de

Dimensions and Weight
GTIN:	4060137039485
HAN:	2263
Category:	Miscellaneous
RoHS Certificate:	compliant
Shipping weight:	0,01 kg
Item weight:	0,01 kg
Dimensions ( Length × Width × Height ):	6,60 × 2,30 × 0,10 cm

Product Description

DESCRIPTION

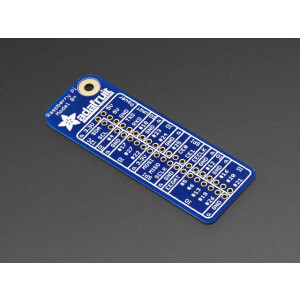

This board makes connecting wires to the Raspberry Pi GPIO incredibly easy. It's a reference board that makes it really easy to see if you're connecting your wires correctly. We liked the Pi GPIO Reference Board from Low Voltage Labs so much that we worked with them to license their design! We made some changes to the Low Voltage version - including grouping the pins into categories like I2C, IO, UART, SPI, and power.

It's only 0.8mm thick, idiot proof (you can't put it on backwards...), and makes a great keychain for the Pi enthusiast. Simply slide it onto the 2x20 GPIO header, then you can plug in premium jumper wires with female sockets on top as shown.

This version works with the Raspberry Pi Model B+ / Pi 2 / Pi 3. It does not work with the Raspberry Pi Model B but we do have a B version as well!

TECHNICAL DETAILS

Dimensions: 66mm x 23mm x 0.8mm / 2.6" x 0.9" x 0.03"
Weight: 2.4g

Write the first review for this item and help others make a purchase decision!
