Adafruit FLORA - Wearable electronic platform: Arduino-compatible - v3

Adafruit

Adafruit FLORA - Wearable electronic platform: Arduino-compatible - v3

Name: Adafruit FLORA - Wearable electronic platform: Arduino-compatible - v3
Brand: Adafruit
SKU: AF659
Price: 18.04 EUR
Availability: InStock

SKU: AF659

GTIN:>4060137039263

HAN: 659

Category: Miscellaneous

18,04 €

per pack

incl. 19% VAT plus

Net: 15,16 €

Choose tax zone / country of delivery

Product customisation & sourcing & PCBA one-stop service are available with us.

Request personal offer!

Available immediately

Delivery time: 11 - 13 Workdays (DE - int. shipments may differ)

Product Information

Product safety information

Manufacturer information:

Adafruit Industries LLC
Varick St. 150
New York
New York, Vereinigte Staaten, 10013
[email protected]
https://eckstein-shop.de/Adafruit-Marken

Responsible person:

Eckstein GmbH
Am Ostbahnhof 3
Niedersachsen
Clausthal-Zellerfeld, Deutschland, 38678
[email protected]
https://eckstein-shop.de

Dimensions and Weight
GTIN:	4060137039263
HAN:	659
Category:	Miscellaneous
RoHS Certificate:	compliant
Shipping weight:	0,01 kg
Item weight:	0,01 kg

Product Description

DESCRIPTION

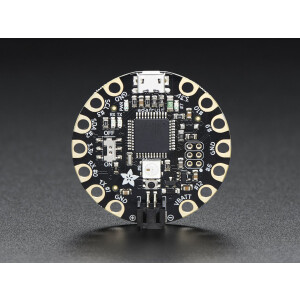

FLORA is Adafruit's fully-featured wearable electronics platform. It's a round, sewable, Arduino-compatible microcontroller designed to empower amazing wearables projects.FLORA comes with Adafruit's support, tutorials and projects. Check out dozens of FLORA tutorials on the Adafruit Learning System, with more added all the time!

The FLORA is small (1.75" diameter, weighing 4.4 grams). The FLORA family also has the best stainless steel threads, sensors, GPS modules and chainable LED NeoPixels, perfect accessories for the FLORA main board.

The FLORA has built-in USB support. Built in USB means you plug it in to program it, it just shows up - all you need is a Micro-B USB cable, no additional purchases are needed! We have a modified version of the Arduino IDE so Mac & Windows users can get started fast - or with the new 1.6.4+ Arduino IDE, it takes only a few seconds to add Flora-support. The FLORA has USB HID support, so it can act like a mouse or keyboard to attach directly to computers.

FLORA has a small but easy to use onboard reset button to reboot the system. The power supply is designed to be flexible and easy to use. There is an onboard polarized 2 JST battery connector with protection schottky diode for use with external battery packs from 3.5v to 16v DC in. Can be used with LiIon/LiPoly, LiFe, alkaline or rechargeable NiMh/NiCad batteries of any size. The FLORA does not have a LiPo charger included by design, this allows safe use with multiple battery types and reduces risk of fire as it is not recommended to charge these batteries on fabric. We suggest one of our micro-lipo chargers if you want to use LiPo batteries with FLORA.

FLORA has onboard power switch connected to 2A power FET for safe and efficient battery on/off control, so you can power quite a bit without burning out your switch. The FLORA has an onboard 3.3v 250mA regulator with a protection diode and USB fuse so that the microcontroller voltage is consistent and can power common 3.3v modules and sensors.

Technical Details

Dimensions: 45mm round x 7mm thick/ 1.8" round x 0.3" thick
Weight: 4.7g
FLORA is fabric friendly-- all the components on board are flush to the PCB and won't snag delicate garments (it does not use FTDI headers).

FLORA is extremely beginner-friendly - it is difficult to destroy the FLORA by connecting a battery backwards due to polarized connector and protection diodes. The on-board regulator means that even connecting a 9V battery will not result in damage or tears.
The FLORA has 4 indicator LEDs: power good, digital signal LED for bootloader feedback, data rx/tx. Also onboard is an ICSP connector for easy reprograming for advanced users. Flora v2 even has an RGB NeoPixel for even more colorful lighting.
There are 14 sewing tap pads for attachment and electrical connections. Data buses are interleaved with power and ground pads for easy module and sensor attachments without worrying about overlapping traces which are not possible with conductive thread.

You can also cheek our "Dokumente" for more information

Package List:

1x Adafruit FLORA - Wearable electronic platform: Arduino-compatible - v3

Write the first review for this item and help others make a purchase decision!

User`s Guide

EagleCAD PCB files on GitHub

Fritzing object in Adafruit Fritzing library
