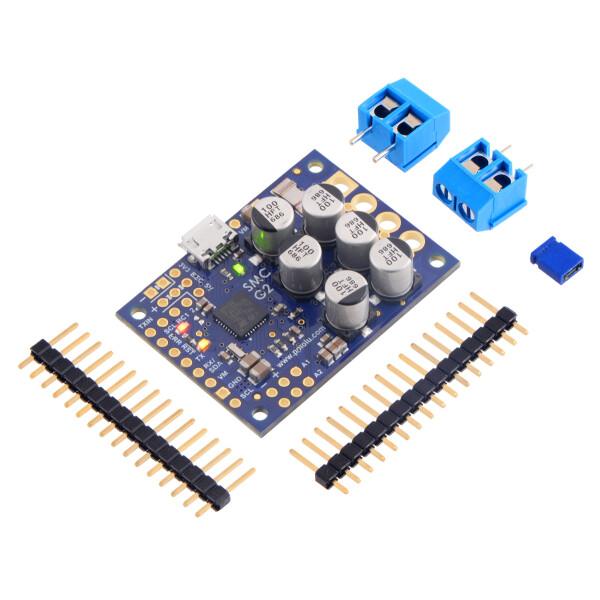

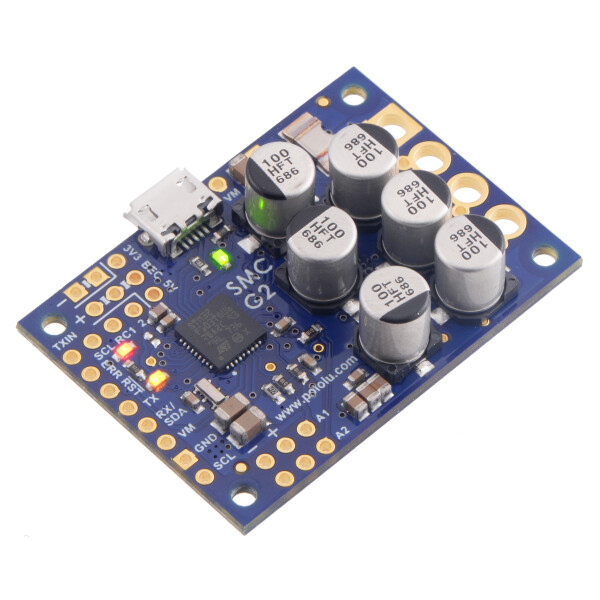

Pololu Simple Motor Controllers

The Pololu simple motor controllers make basic control of brushed DC motors easy. These highly versatile and configurable motor controllers offer four interface modes - USB, TTL serial (simple ASCII or compact command packets), analog voltage, and hobby radio control (RC) - and span a wide range of power levels:


18v7

18v15

24v12

18v25

24v23
Absolute max voltage: 30 V 30 V 40 V 30 V 40 V
Recommended max voltage(1): 24 V 24 V 34 V 24 V 34 V
Max continuous current
w/o heat sink:
7 A 15 A 12 A 25 A 23 A
Width: 1.1" (2.8 cm) 1.1" (2.8 cm) 1.1" (2.8 cm) 1.2" (3.1 cm) 1.2" (3.1 cm)
Length: 2.1" (5.3 cm) 2.1" (5.3 cm) 2.1" (5.3 cm) 2.3" (5.8 cm) 2.3" (5.8 cm)
Weight(2): 7 g 7 g 7 g 12 g 12 g
Available with connectors
installed?
Yes Yes Yes No No

1 We do not recommend using the 18v7, 18v15, or 18v25 versions with 24 V batteries, which can significantly exceed 24 V when fully charged. The 24v12 and 24v23 are the much more appropriate controller for 24 V applications.
2 This is the weight of the board without header pins, terminal blocks, or through-hole power capacitor.
