HIMALAYA Matrix Base Prototyping Add-on Board Single for Matrix-Core Board

Artikelnummer: HL02002

The HIMALAYA Matrix are a complete line of development boards from Eckstein. Based on ESP32-bit, the Matrix-core is both standalone and stackable. It's able to be powered by lipo batteries for on-the-go use or by its micro-USB plugs for stationary projects.
The Matrix Base are flexible and portable. They are a complete line of accessories to stack boards and add room for prototyping.

Kategorie: Plus


1,86 €

inkl. 19% USt.,

sofort verfügbar

Lieferfrist: ca. 1 - 2 Tage

Stk


Beschreibung

Übersicht

This is the Matrix Base Single -a prototyping add-on for Matrix-Core Board. Using the Stacking Headers or Female Headers you can connect a Matrix Base on top or bottom of your Matrix-Core board and let the board take flight!

This has a duplicate breakout for each pin, as well as a bunch of plain grid proto holes. For GND and 3.3V, we give you a strip of connected pads. There's plenty of room for buttons, indicator LEDs, or anything for your portable project.

Technische Daten

  • PCB: ca.60mm x 26,5mm x 1,6mm
  • Weight: 4,8g

Dimension: (mil)

1mil=0,0254mm

Lieferumfang

1x Matrix Base Single prototyping add-on Board

2x Stacking Headers 16pin

2x Female Headers 16pin

2x Male Headers 16pin



Dokumente

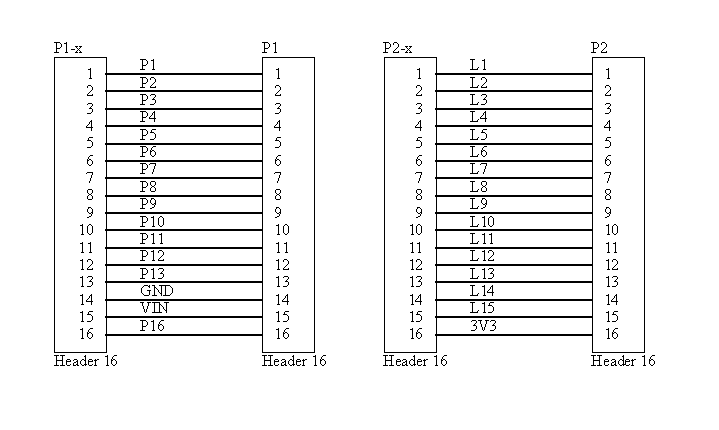

Schematic
