Espressif ESP-WROOM-32 original ESP32 IoT Wifi Wlan Bluetooth Module mit Adapter Board

Artikelnummer: CP06073

EAN: 4060137032172

Kategorie: SALE %


8,45 €

inkl. 19% USt.,

Alter Preis: 8,95 €
sofort verfügbar

Lieferzeit: 61 bis 62 Tage



Beschreibung

ESP-WROOM-32 is Powered by Espressif's most advanced SoC, the ESP-WROOM-32 features high performance, a
wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution

tailored to advanced IoT applications.

Eigenschaften
  • 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
  • Integrated 520 KB SRAM
  • Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
  • Integrated dual mode Bluetooth (classic and BLE)
  • 16 MByte flash
  • 2.2V to 3.6V operating voltage
  • -40°C to +125°C operating temperature
  • On-board PCB antenna / IPEX connector for external antenna
  • Supports sniffer, station, softAP and Wi-Fi direct modes
  • Minimum receiver sensitivity of -98 dBm
  • 135 Mbps UDP sustained throughput
  • 2.5 µA deep sleep current















Wi-fi
802.11 b/g/n/e/i
802.11 n (2.4 GHz), up to 150 Mbps
802.11 e: QoS for wireless multimedia technology
WMM-PS, UAPSD
A-MPDU and A-MSDU aggregation
Block ACK
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-authentication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/SoftAP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and selection
Compliant with Bluetooth v4.2 BR/EDR and BLE specification


















Bluetooth
Class-1, class-2 and class-3 transmitter without external power amplifier
Enhanced power control
+10 dBm transmitting power
NZIF receiver with -98 dBm sensitivity
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART
High speed UART HCI, up to 4 Mbps
BT 4.2 controller and host stack
Service Discover Protocol (SDP)
General Access Profile (GAP)
Security Manage Protocol (SMP)
Bluetooth Low Energy (BLE)
ATT/GATT
HID
All GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet


ESP-WROOM-32  Pinbelegung:

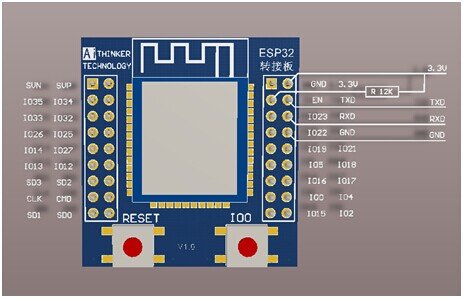

ESP32 Adapter Pinbelegung:


Downloads: ESP32 Datensheet

Development resources: Hier ist das Datensheet von ESP32.
Click here to download


Documents:

    Lieferumfang:
    1x ESP-WROOM-32 WLAN & BLE Module
    1x Adapter Board
