ESP8266 ESP-12 WIFI Evaluation Board Wireless Test Board full IO Leads

Artikelnummer: CP06025

Kategorie: Entwicklungsboard


4,95 €

inkl. 19% USt.,

sofort verfügbar

Lieferfrist: ca. 1 - 2 Tage



Beschreibung

Overview

This Evaluation Board is a low-cost minimum system for learning or developing AT command or SDK download. It is mainly used to test the stability of the ESP-12.

Technical Details of ESP-12 Modul

  • SoC for Iot & Smarthome
  • Programming direkt with Arduino IDE
  • LWIP protocol
  • Support three modes: AP, STA, AP + STA
  • Model: ESP8266 ESP-12
  • ISM 2.4GHz
  • PA+25dBm
  • 802.11b/g/n
  • Size: 24X16mm

Using steps:

    1. Install IOT.APK into your mobile phone
    2. Using ESP8266FLASHER download software and update the firmware into the module
    3. Put on the AA battery, using mobile phone search network AI-THINKER
    4. Add the router, password: ai-thinker
    5. After all successed , you can use your mobile phone to control this module

Please note:

Step 1: it doesn't need any router, the mobile phone can directly control the module

Step 2: You can use the mobile phone WIFI control module

Step 3: Once the module is mounted to the server, the mobile phone can use 2G 3G 4G network flow control the module

All the above steps finished, then:

Using mobile phone directly control the module AP, then control dimming switch IO or based the step 1 , enter the configuration menu, also can enter the home network. Once the module connect to your home network successfully, the module will automatically mount to the Server

Package List

1x ESP8266 ESP-12 WIFI Evaluation Board
1x ESP-12 (already soldered on PCB)
1x AA battery holder (already attached to the PCB)

Dokumente

ESP8266 Datasheet

esp8266-server

Arduino IDE mit dem ESP8266

ESP8266 in der Arduino IDE

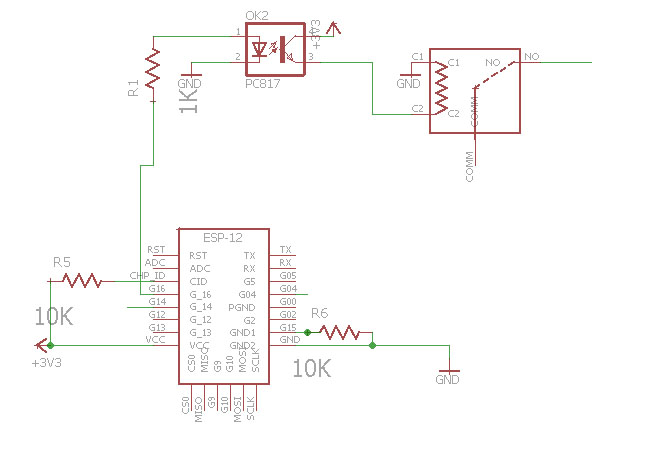

Schematic
