Albistech Mini P24-BL2430 24V 94RPM ØD6x15.2mm Single Shaft

Name: Albistech Mini P24-BL2430 24V 94RPM ØD6x15.2mm Single Shaft
Brand: AlbisTech
SKU: RD01342
Price: 55.00 EUR
Availability: InStock

SKU: RD01342

GTIN:>4060137212420

HAN: P24-BL2430-2460-Ø2x9mm-S-64

Category: Planetengetriebemotor

55,00 €

incl. 19% VAT plus

Net: 46,22 €

Choose tax zone / country of delivery

Request personal offer!

Available immediately

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Description
Reviews

Product Information

Product safety information

Manufacturer information:

AlbisTech Kft.
Kőbányai út 49
Hungary, Ungarn, 1101
[email protected]
https://www.albistech.eu

Dimensions and Weight
GTIN:	4060137212420
HAN:	P24-BL2430-2460-Ø2x9mm-S-64
Category:	Planetengetriebemotor
No-Load Speed (RPM):	94
Encoder:	Without
Gear Ratio:	64
Operating Voltage:	24
No-Load Current (A):	0.09
Max Power (W):	5.7
:	BLDC
:	8
:	2.5
:	0.9
:	75
:	D6
:	15.2
:	CW&CCW
Shipping weight:	0,16 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	8,13 × 2,40 × 2,40 cm

Product Description

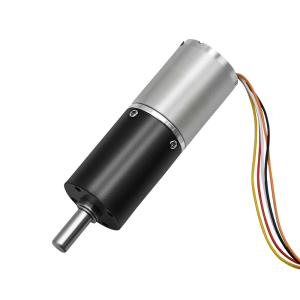

Compact BLDC Plant Gear motor Albistech P24-BL2430-2460-Ø2x9mm-S-64 24V (64:1) with approx. 94 rpm no‑load speed and high torque (2.5 kg·cm rated, 8 kg·cm stall). Solid‑steel output shaft D6 × 15.2 mm, sealed metal gearbox for long service life. Dimensions 8.13 × 2.4 × 2.4 cm, weight 0.15 g. Ideal for robot drives, AGV powertrains, camera pan/tilt modules and compact automation solutions.

The ALBtech P24-BL2430-2460-Ø2x9mm-S-64 is a BLDC Plant Gear motor designed for low‑speed, high‑torque applications. The sealed three‑stage metal gearbox ensures long life under cyclic loads, while the 24 V BLDC motor with optimized armature delivers low no‑load losses.

Specification

Model:	P24-BL2430-2460-Ø2x9mm-S-64
Rated voltage:	24 V DC
Gear ratio:	64:1 (Plant Gear)
No‑load speed:	94 rpm
No‑load current:	0.09 A
Rated speed:	75 rpm
Rated torque:	2.45 N·cm (2.5 kg·cm)
Rated current:	0.24 A
Stall torque:	8 kg·cm
Stall current:	0.9 A
Output power:	5.7 W
Shaft:	D6 mm × 15.2 mm, solid steel, Einzeln
Reversible:	CW&CCW
Dimensions:	8.13 (L) × 2.4 (W) × 2.4 (H) cm
Weight:	0.15 kg
Gear type:	Plant Gear (metal)
Motor type:	BLDC
Encoder:	Ohne
Country of origin:	CN
