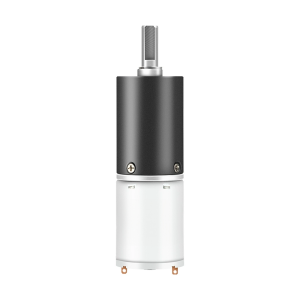

Albistech Mini P24-370 6V 340RPM ØD6x15.2mm Single Shaft

In stock

Albistech Mini P24-370 6V 340RPM ØD6x15.2mm Single Shaft

Name: Albistech Mini P24-370 6V 340RPM ØD6x15.2mm Single Shaft
Brand: AlbisTech
SKU: RD01253
Price: 24.99 EUR
Availability: InStock

SKU: RD01253

GTIN:>4060137211539

HAN: P24-370-685-Ø2x10mm-S-25

Category: Planetengetriebemotor

24,99 €

incl. 19% VAT plus

Net: 21,00 €

Choose tax zone / country of delivery

Request personal offer!

Available immediately

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Description
Reviews

Product Information

Product safety information

Manufacturer information:

AlbisTech Kft.
Kőbányai út 49
Hungary, Ungarn, 1101
[email protected]
https://www.albistech.eu

Dimensions and Weight
GTIN:	4060137211539
HAN:	P24-370-685-Ø2x10mm-S-25
Category:	Planetengetriebemotor
No-Load Speed (RPM):	340
Encoder:	Without
Gear Ratio:	25
Operating Voltage:	6
No-Load Current (A):	0.35
Max Power (W):	7
:	DC
:	2.5
:	1
:	2.2
:	292
:	D6
:	15.2
:	CW&CCW
Shipping weight:	0,16 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	8,15 × 2,40 × 2,40 cm

Product Description

Compact DC Plant Gear motor Albistech P24-370-685-Ø2x10mm-S-25 6V (25:1) with approx. 340 rpm no‑load speed and high torque (1 kg·cm rated, 2.5 kg·cm stall). Solid‑steel output shaft D6 × 15.2 mm, sealed metal gearbox for long service life. Dimensions 8.15 × 2.4 × 2.4 cm, weight 0.15 g. Ideal for robot drives, AGV powertrains, camera pan/tilt modules and compact automation solutions.

The ALBtech P24-370-685-Ø2x10mm-S-25 is a DC Plant Gear motor designed for low‑speed, high‑torque applications. The sealed three‑stage metal gearbox ensures long life under cyclic loads, while the 6 V DC motor with optimized armature delivers low no‑load losses.

Specification

Model:	P24-370-685-Ø2x10mm-S-25
Rated voltage:	6 V DC
Gear ratio:	25:1 (Plant Gear)
No‑load speed:	340 rpm
No‑load current:	0.35 A
Rated speed:	292 rpm
Rated torque:	0.98 N·cm (1 kg·cm)
Rated current:	1.2 A
Stall torque:	2.5 kg·cm
Stall current:	2.2 A
Output power:	7 W
Shaft:	D6 mm × 15.2 mm, solid steel, Einzeln
Reversible:	CW&CCW
Dimensions:	8.15 (L) × 2.4 (W) × 2.4 (H) cm
Weight:	0.15 kg
Gear type:	Plant Gear (metal)
Motor type:	DC
Encoder:	Ohne
Country of origin:	CN
