Albistech Mini 4632-370 24V 8RPM ØD6(Solid)x14mm Single Shaft

In stock

Albistech Mini 4632-370 24V 8RPM ØD6(Solid)x14mm Single Shaft

Name: Albistech Mini 4632-370 24V 8RPM ØD6(Solid)x14mm Single Shaft
Brand: AlbisTech
SKU: RD01419
Price: 21.99 EUR
Availability: InStock

SKU: RD01419

GTIN:>4060137213502

HAN: 4632-370-2485-Ø2x10mm-S-1000

Category: Schneckengetriebemotor

21,99 €

incl. 19% VAT plus

Net: 18,48 €

Choose tax zone / country of delivery

Request personal offer!

Available immediately

Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Description
Reviews

Product Information

Product safety information

Manufacturer information:

AlbisTech Kft.
Kőbányai út 49
Hungary, Ungarn, 1101
[email protected]
https://www.albistech.eu

Dimensions and Weight
GTIN:	4060137213502
HAN:	4632-370-2485-Ø2x10mm-S-1000
Category:	Schneckengetriebemotor
Encoder:	Without
Gear Ratio:	1000
Operating Voltage:	24
No-Load Current (A):	0.05
Max Power (W):	3.6
:	DC
:	100
:	25
:	1.6
:	D6(Solid)
:	14
:	CW&CCW
Shipping weight:	0,19 kg
Item weight:	0,15 kg
Dimensions ( Length × Width × Height ):	7,60 × 3,20 × 3,65 cm

Product Description

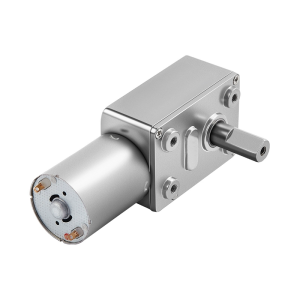

Compact DC Worm Gear motor Albistech 4632-370-2485-Ø2x10mm-S-1000 24V (1000:1) with approx. 8 rpm no‑load speed and high torque (25 kg·cm rated, 100 kg·cm stall). Solid‑steel output shaft D6(Solid) × 14 mm, sealed metal gearbox for long service life. Dimensions 7.6 × 3.2 × 3.65 cm, weight 0.165 g. Ideal for robot drives, AGV powertrains, camera pan/tilt modules and compact automation solutions.

The ALBtech 4632-370-2485-Ø2x10mm-S-1000 is a DC Worm Gear motor designed for low‑speed, high‑torque applications. The sealed three‑stage metal gearbox ensures long life under cyclic loads, while the 24 V DC motor with optimized armature delivers low no‑load losses.

Specification

Model:	4632-370-2485-Ø2x10mm-S-1000
Rated voltage:	24 V DC
Gear ratio:	1000:1 (Worm Gear)
No‑load speed:	8 rpm
No‑load current:	0.05 A
Rated speed:	6 rpm
Rated torque:	24.5 N·cm (25 kg·cm)
Rated current:	0.15 A
Stall torque:	100 kg·cm
Stall current:	1.6 A
Output power:	3.6 W
Shaft:	D6(Solid) mm × 14 mm, solid steel, Einzeln
Reversible:	CW&CCW
Dimensions:	7.6 (L) × 3.2 (W) × 3.65 (H) cm
Weight:	0.165 kg
Gear type:	Worm Gear (metal)
Motor type:	DC
Encoder:	Ohne
Country of origin:	CN
