AI-Thinker ESP8266 ESP-03 Serial WIFI Wireless Remote Control Module

Artikelnummer: CP06046

Hersteller Artikel Nr.: ESP-03

Kategorie: SALE %

3,93 €

inkl. 19% USt.,

ab StkStückpreis
503,54 €
2003,34 €
sofort verfügbar

Lieferzeit: 1 bis 2 Tage




ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Based on ESP8266, which festures:

32-bit RISC CPU: Tensilica Xtensa LX106 running at 80 MHz

64 KiB of instruction RAM, 96 KiB of data RAM

External QSPI flash - 512 KiB to 4 MiB (up to 16MiB is supported)

IEEE 802.11 b/g/n Wi-Fi

Integrated TR switch, balun, LNA, power amplifier and matching network

WEP or WPA/WPA2 authentication, or open networks

16 GPIO pins


I²S interfaces with DMA (sharing pins with GPIO)

UART on dedicated pins, plus a transmit-only UART can be enabled on GPIO2

1 10-bit ADC

Powerful internal LWIP protocol

Supports three modes: AP, STA and AP + STA

Perfect and efficient AT command

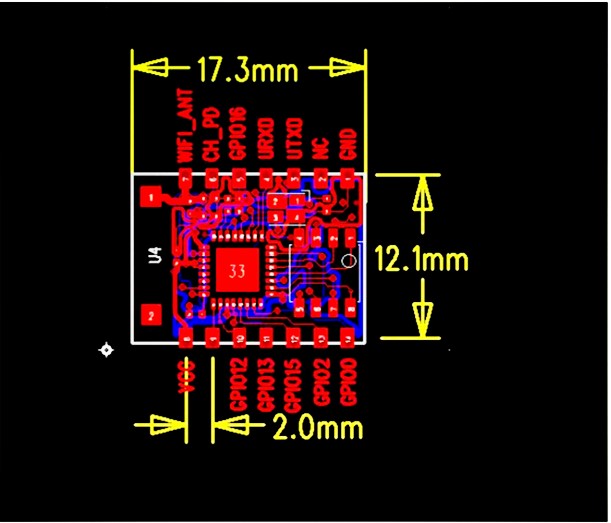

Size: 17,3 x 12.1mm

S   SMD packing, built-in ceramic antenna, all are IO leads


NameSKUPinsFormAntennaAntenna SocketLEDShieldedDimensions(mm)
ESP-01CP0602882x4 DILetched-on PCBneinJanein14,3x24,8
ESP-02CP0603682x4 castellatednoneja, U-FL connectorneinnein16,3x14,9
ESP-03CP06046142x7 castellatedCeramicneinneinnein17,3x12,1
ESP-04CP06035142x7 castellatednoneneinneinnein14,7x12,1
ESP-05CP0603451x5 SILnoneja, U-FL connectorneinnein14,2x14,2
ESP-06CP0604712+GND4x3 dicenoneneinneinJa14,2x14,7
ESP-07CP06029162x8 pinholeceramicjaJaJa21.2x16
ESP-08CP06048162x8 castellatednoneneinneinJa18x16
ESP-09CP0604412+GND4x3 dicenoneneinneinnein10x10
ESP-10CP0604951x5 castellatednoneneinneinnein14,2x10
ESP-11CP0603881x8 pinholeceramicneinneinnein17,3x12,1
ESP-12CP06050162x8 castellatedetched-on PCBneinJaJa24x16
ESP-12ECP06026222x8+6etched-on PCBneinJaJa24x16
ESP-12FCP06042222x8+6etched-on PCBneinJaJa24x16
ESP-13CP06045182x9 castellatedetched-on PCBneinneinJa18x20
ESP-14CP06043222x8+6etched-on PCBneinJaJa24x16
ESP-WROOM-02CP06054182x9 castellatedetched-on PCBneinneinJa18x20


1 x ESP8266 ESP-03 Wireless remote Control Module

1. Downloads: Allgemeine Dokumente für ESP8266.

Development resources: demo codes, schematic, datasheets, etc.
Click here to download
