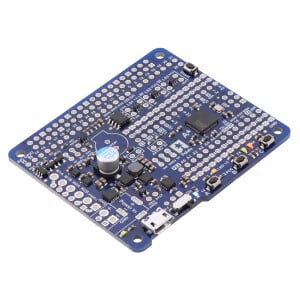

A-Star 32U4 Programmable Controllers LV with Raspberry Pi Bridge

Artikelnummer: PO00001-011

Kategorie: Boards

Typ

23,51 €

inkl. 19% USt.,

sofort verfügbar

Lieferzeit: 1 bis 3 Tage



Beschreibung

The Pololu A-Star microcontroller boards are general-purpose programmable modules based on Atmel AVR microcontrollers. A USB interface and preloaded Arduino-compatible bootloader on each A* makes it easy to get started programming them. The table below shows some key features and specifications of our A-Star microcontroller boards to help you choose the right one for your application.
The Pololu A-Star 32U4 Prime is a general-purpose programmable board based on Atmel's ATmega32U4 AVR microcontroller and arranged in the common Arduino form factor exemplified by the Uno R3 and Leonardo. As such, the A-Star Prime (abbreviated A* Prime) is compatible with many Arduino shields, including all of the Arduino shields we carry. All 26 of the microcontroller's GPIO lines are accessible on the board, including seven than can be used as PWM outputs and twelve that can be used as analog inputs. The ATmega32U4 is capable of native full-speed USB, which makes it more versatile than similar boards that rely on USB-to-serial adapters: in addition to supporting a virtual (CDC) serial/COM port interface, the A-Star can appear to a connected computer as a mouse and keyboard. The A-Star's USB interface can be accessed through its USB Micro-B connector.
The A* Prime supports the on-board microcontroller with many additional features and improvements over competing products, including enhanced connectivity and superior power management. The Prime is available in two main versions: LV, which features a blue solder mask and a step-up/step-down voltage regulator that allows operation from 2.7 V to 11.8 V, and SV, which features a green solder mask and a switching step-down regulator that allows operation from 5 V to 36 V. Each version is available in several different configurations: with or without preinstalled through-hole components like standard Arduino female headers and with or without microSD support. There is also a configuration available for each version with an 8×2 character LCD.

Artikel Microcontroller Betriebsspannung LED Taste Schalter Summer microSD LCD Motor Treiber
A-Star 32U4 Micro














ATmega32U4
5,5V - 15V 2


kein



ohne



ohne




ohne






ohne










ohne
A-Star 32U4 Mini ULV 0,5 V - 5,5 V












3
A-Star 32U4 Mini LV 2,7 V - 11,8 V
A-Star 32U4 Mini SV 5 V - 36 V
A-Star 32U4 Prime LV

2,7 V - 11,8 V










3










mit










mit
A-Star 32U4 Prime LV microSD
mit
A-Star 32U4 Prime LV microSD with LCD mit
A-Star 32U4 Prime SV

5 V - 36 V
ohne
ohne
A-Star 32U4 Prime SV microSD
mit
A-Star 32U4 Prime SV microSD with LCD mit
A-Star 32U4 Robot Controller LV
2,7 V - 11 V



ohne



ohne



mit
A-Star 32U4 Robot Controller LV(assembled)
A-Star 32U4 Robot Controller SV
5,5 V - 36 V
A-Star 32U4 Robot Controller SV(assembled)
