5,0" MIT Touchscreen MD050SD MCU Bus TFT LCD Display

Artikelnummer: CP11011

Hersteller Artikel Nr.: CP11011

H73

Kategorie: TFT Module


55,45 €

inkl. 19% USt.,

sofort verfügbar

Lieferzeit: 1 bis 2 Tage

Stück


Beschreibung

MD050SD adopts 8080 timing sequence with 16-bit parallel bus interface, resolution of 800 × 480, display panel with 16M colour and integrated with 8-page video memory (the remaining memory could be used as extended memory). The interior of module utilizes CPLD + SDRAM mode to drive RGB interface display, which does not only realize conversion between the bus interface and RGB interface, but also provides a range of useful features.

MD050SD adopts XPT2046 as touch screen controller. The XPT2046 is a 4-wire resistive touch screen controller that incorporates a 12-bit 125 kHz sampling SAR type A/D converter.
  • Mit Touchscreen
  • Display Mode: 5,0" TFT SPI Interface, Transmissive, Normally white
  • Display Color: 262K colors
  • Backlight Type: LED
  • Resolution: 800W * 480H Dots
  • IC Driver: MD050SD (industry solution)
  • 5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino system directly
Description:

Applicable CPU: 51, AVR, STM32, PIC, MSP430, DSP, ARM , etc.

MD050SD 8080 Timing using 16bit parallel bus interface , resolution 800 × 480, 16M colours display panel. Integrated 8 -inch display ( memory could ever be used as extended memory ) . Inside the module using CPLD + SDRAM mode to drive RGB interface display, the bus interface and conversion between RGB interface also provides a range of useful features , specifically refer to the back of register descriptions and Demo program.

Job stability of the module with super anti-jamming capability , far beyond driven solutions on the market SSD1963 , SSD1963 interference poor, black and white with crash risk .

Functions, this module provides 8 memory can write data to achieve the background , a momentary toggle full screen display command data , far beyond the market RA8875 driver program.

Control MD050SD general TFT controller eliminates the cumbersome need initialization code , MD050SD need to initialize , just need to do a reset operation can begin work . Only need to use at least five stacker instruction can operate normally. Greatly simplifies the code , reducing the difficulty of debugging and error probability .

MD050SDThe fast response , the read and write cycles to achieve 200ns . Fastest achieve 13 frames in full screen refresh rate , integrated 8MB SDRAM display buffer corresponding to 8 . Showing page register read and write page register set independently , the currently displayed page and the page can be read different pages , facilitate the achievement of the background written, full page fast switching.

TFT driver timing and circuit design have been optimized to ensure accurate colour reduction, display a stable , flicker or eliminate channelling colour , and provides LED backlight driver , brightness from 0 ( closed ) to 16 ( full ) between regulation.

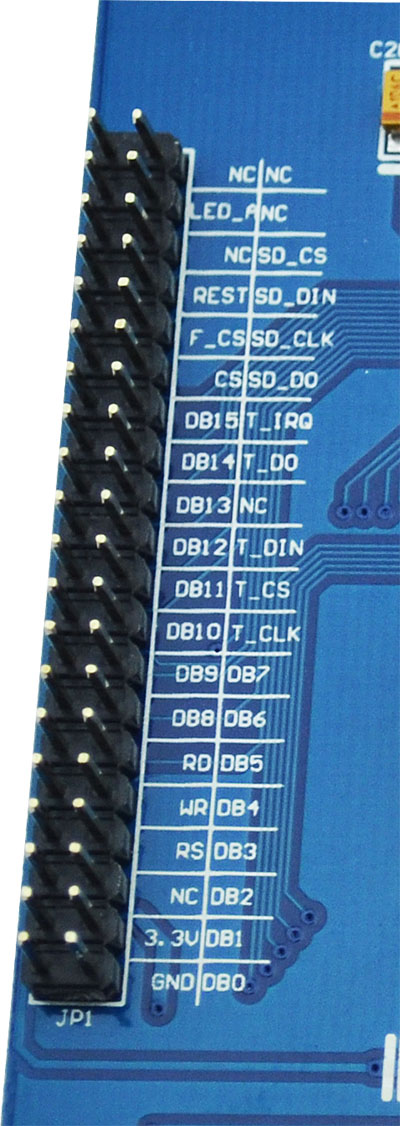

Pinout:
CP11 Pinout.jpg (282×763)


                                                 Arduino Display
SKU Size Resolution LCD Interface Driver IC Outline Dimension(mm) Touch Panel Type
CP11020 1.44inch 128X128 SPI ILI9163C 32.36(W)x38(H) non-touch
CP11001 1.8inch 128X160 SPI ST7735S 50(W)x34(H) non-touch
CP11018 1.8inch 128X160 SPI ST7735 53.5(W)x45(H) non-touch
CP11002 2.2inch 240X320 SPI ILI9341 61(W)x40(H) non-touch
CP11019 2.2inch 176X220 SPI ILI9225 62(W)x41.5(H) non-touch
CP11003 2.4inch 240X320 parallel ILI9341 72(W)x55(H) resistive
CP11004 2.4inch 240X320 parallel ILI9341 72(W)x55(H) non-touch
CP11023 2.4inch 240X320 SPI ILI9341 75.5(W) x41.5(H) resistive
CP11025 2.6inch 320X240 parallel HX8347D 78.2(W)×52.7(H) resistive
CP11005 2.8inch 240X320 parallel ILI9325 84.5(W)x60.7(H) resistive
CP11024 2.8inch 320X240 parallel ILI9341 78.2(W)x52.7(H) resistive
CP11022 3.0inch 480X320 parallel HX8357C 90(W) x 54.3(H) non-touch
CP11017 3.2inch 240X320 parallel ILI9341 94(W)x64(H) resistive
CP11007 4.3inch 480X272 parallel SSD1963 118(W)x75(H) resistive
CP11008 4.3inch 480X272 parallel SSD1963 118(W)x75(H) non-touch
CP11009 5.0inch 800X480 parallel SSD1963 133(W)x83(H) resistive
CP11010 5.0inch 800X480 parallel SSD1963 133(W)x83(H) non-touch
CP11011 5.0inch 800X480 parallel MD050SD 133(W)x83(H) resistive
CP11012 5.0inch 800X480 parallel MD050SD 133(W)x83(H) non-touch
CP11013 7.0inch 800X480 parallel SSD1963 180(W)x107(H) resistive
CP11014 7.0inch 800X480 parallel SSD1963 180(W)x107(H) non-touch
CP11015 7.0inch 800X480 parallel MD070SD 180(W)x107(H) resistive
CP11016 7.0inch 800X480 parallel MD070SD 180(W)x107(H) non-touch

Lieferung:

 1 x   5,0" Serial TFT LCD Modul with Touchscreen


Thema: Arduino
Größe: 5,0 inch
Touchscreen: resistive
Interface: Parallel
Auflösung: 800 X 480
Artikelgewicht: 0,12 Kg

FAQs

FAQs
  1. Gibt es eine Library damit ich das Display an einem Arduino verwenden kann?

    Ja die gibt es. Wir empfehlen die UTFT Library von Henning Karlsen. Diese kann unter folgendem Link heruntergeladen werden:

    http://www.rinkydinkelectronics.com/library.php?id=51

    Bitte denken Sie auch daran, die richtige Treiberversion auszuwählen. Eine Übersicht über die Treiber finden Sie im Library-Ordner in der Datei UTFT.h. Denken Sie auch daran, den verwendeten Treiber in der Datei memorysaver.h auszukommentieren (Je nach Version der UTFT Library, muss die entsprechende Zeile mit dem Treiber durch das Einfügen oder das Entfernen von "//" am Zeilenbeginn aktiviert werden) Sollte es Probleme geben, helfen wir Ihnen gerne weiter. Schreiben Sie uns dazu am besten eine Email an [email protected]
